Valves and Piping parts
Valves and Piping parts

A wide variety of valve and piping parts that have superior compatibility

A wide variety of valve and piping parts that have superior compatibility

Two-way Valves

PowChange Simple Automatic Y-shaped Model(PC-SYA)

<br />
<b>Warning</b>:  Undefined variable $single_name in <b>/home/xb501398/tsukasa-ind.co.jp/public_html/wp-content/themes/tsukasa/single-product.php</b> on line <b>152</b><br />
 イメージ
*Inspection port seal is white.

Applications

Damper allows switching of direction on flow of powder

Specifications

⚫︎Materials: Steel (inner and external surface plated finish), or stainless steel (powder-contacting areas)

⚫︎Damper seal materials:
 Standard specifications...Polyester elastomer
 Metal touch seal specifications...SUS304

⚫︎Standard equipment: Pneumatic cylinder, solenoid valve, and cylinder switch

⚫︎Applied internal pressure: Atmospheric pressure

⚫︎Flange: Equivalent to JIS 5K

⚫︎Options: Explosion specifications, secondary battery specifications, surface treatment(adhesion prevention, curing treatment, buffed finish etc.)

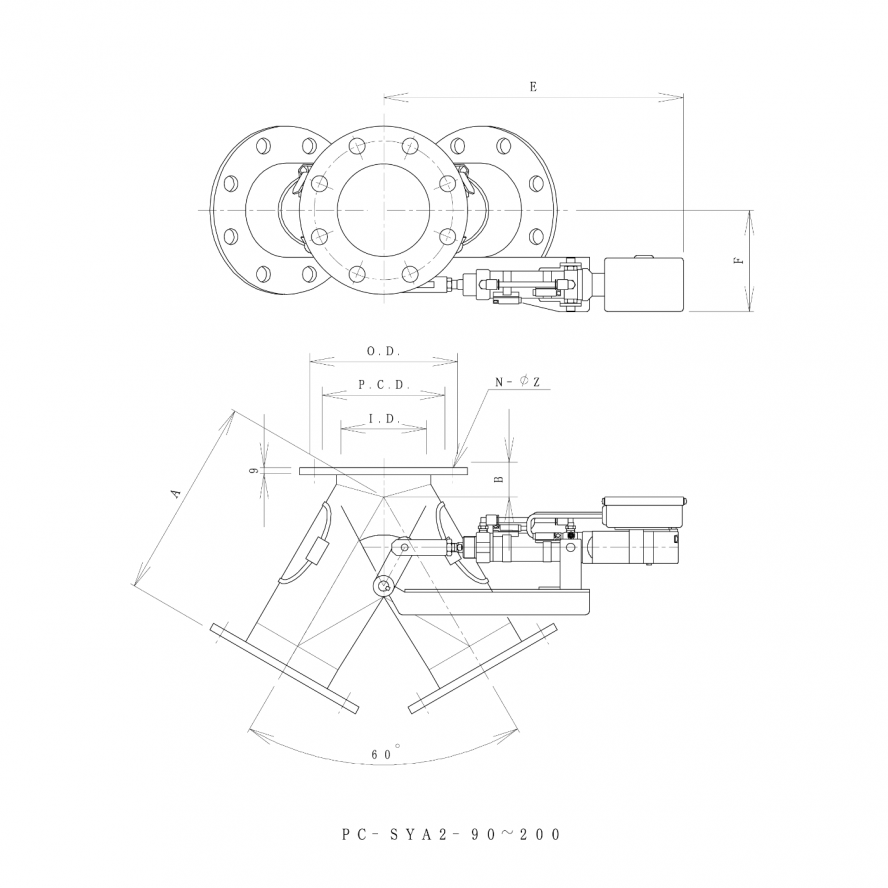

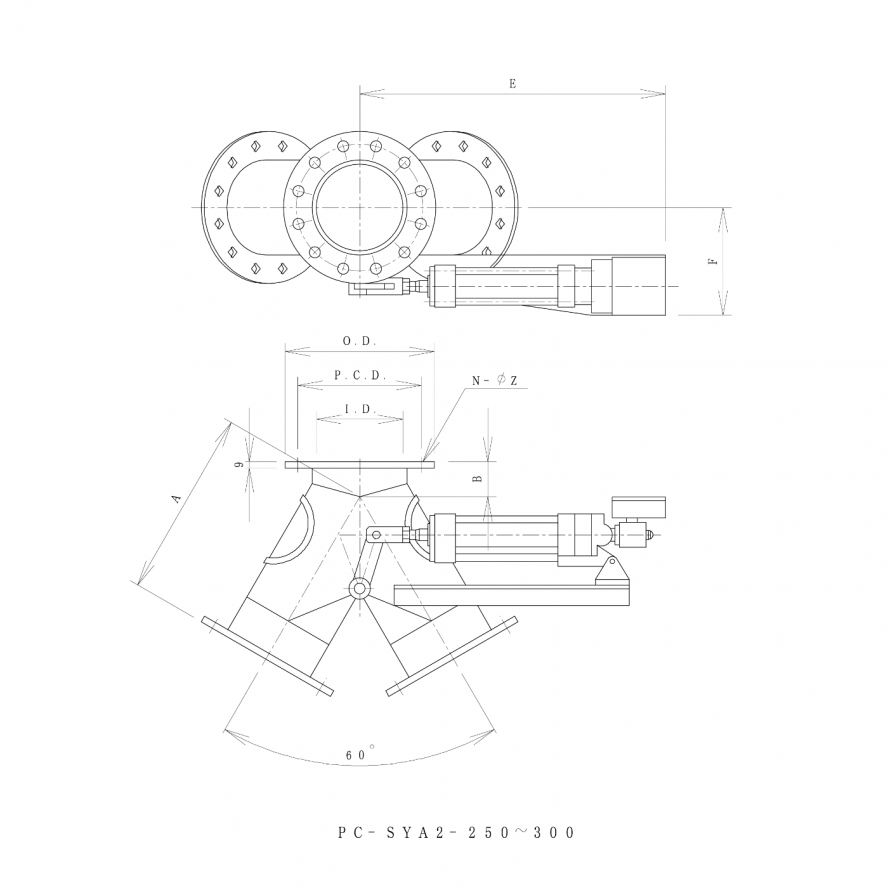

Drawings/Dimensions

<br />
<b>Warning</b>:  Undefined variable $single_name in <b>/home/xb501398/tsukasa-ind.co.jp/public_html/wp-content/themes/tsukasa/single-product.php</b> on line <b>152</b><br />
 イメージ
<br />
<b>Warning</b>:  Undefined variable $single_name2 in <b>/home/xb501398/tsukasa-ind.co.jp/public_html/wp-content/themes/tsukasa/single-product.php</b> on line <b>216</b><br />
 イメージ
https://www.tsukasa-ind.co.jp/wp-content/uploads/2024/05/PCSYA.jpg イメージ
⚫︎Final S indicates stainless steel (powder-contacting areas)

⚫︎When ordering, please provide us with the following information:
 1. Model
 2. Solenoid valve specifications
 3. Cylinder switch voltage and quantity
 4. Conveyed material and conveyance method
If you want to request or download detailed information, or consult with us about technologies or ask questions about our products, contact us from this page.
