Powder Slide Gate

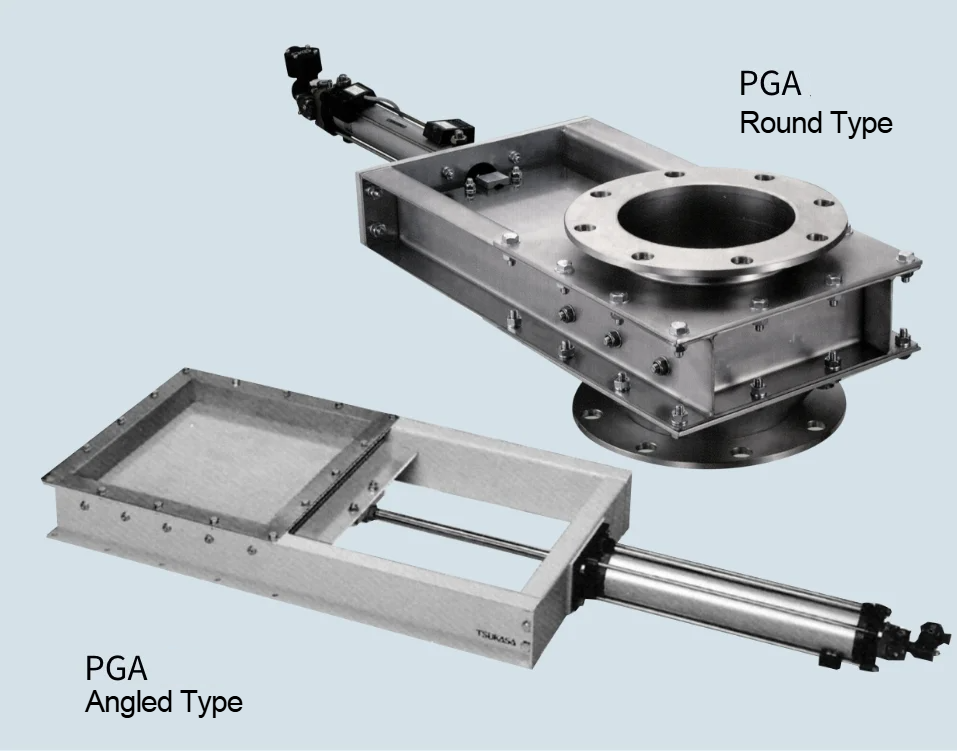

PowGate Slide (Standard) Air cylinder Type(PGA)
Applications
⚫︎Angled Type ― For standard or oblong discharge ports, discharge of powder and granules beneath conveyors, tanks, or similar areas
⚫︎Round Type ― For round discharge ports, discharge of powder and granules beneath silos, check bins, or similar areas
⚫︎Round Type ― For round discharge ports, discharge of powder and granules beneath silos, check bins, or similar areas
Specifications
⚫︎Materials:
Steel or stainless steel (powder-contacting areas)
⚫︎Standard color: Steel sections ― N9 white
⚫︎Cylinder air pressure: 0.4MPa to 0.6MPa
⚫︎Standard equipment:
Pneumatic cylinder, solenoid valve, and cylinder switch
Steel or stainless steel (powder-contacting areas)
⚫︎Standard color: Steel sections ― N9 white
⚫︎Cylinder air pressure: 0.4MPa to 0.6MPa
⚫︎Standard equipment:
Pneumatic cylinder, solenoid valve, and cylinder switch
Seal Method
⚫︎Standard seal for granules…Seal material:
Ultra-high molecular weight polyethylene (Final sign of this model is no-sign)
⚫︎Standard seal for powders…Seal material:
Grand packing (Final sign of this model is G)
⚫︎Double seal…Seal material:
[Inner seal]Ultra-high molecular weight polyethylene (Final sign of this model is W)
[Outer seal]Grand packing
When ordering, please provide us with the following information:
1.Model 2.Solenoid-valve specifications 3.Cylinder switch voltage and quantity 4.Conveyed material (powder or granulate) 5.Frequency of operation
Ultra-high molecular weight polyethylene (Final sign of this model is no-sign)
⚫︎Standard seal for powders…Seal material:
Grand packing (Final sign of this model is G)
⚫︎Double seal…Seal material:
[Inner seal]Ultra-high molecular weight polyethylene (Final sign of this model is W)
[Outer seal]Grand packing
When ordering, please provide us with the following information:
1.Model 2.Solenoid-valve specifications 3.Cylinder switch voltage and quantity 4.Conveyed material (powder or granulate) 5.Frequency of operation
Drawings/Dimensions
![https://www.tsukasa-ind.co.jp/wp-content/uploads/2024/05/pga02.jpg イメージ](https://www.tsukasa-ind.co.jp/wp-content/uploads/2024/05/pga02.jpg)
