Crushing and Milling Process

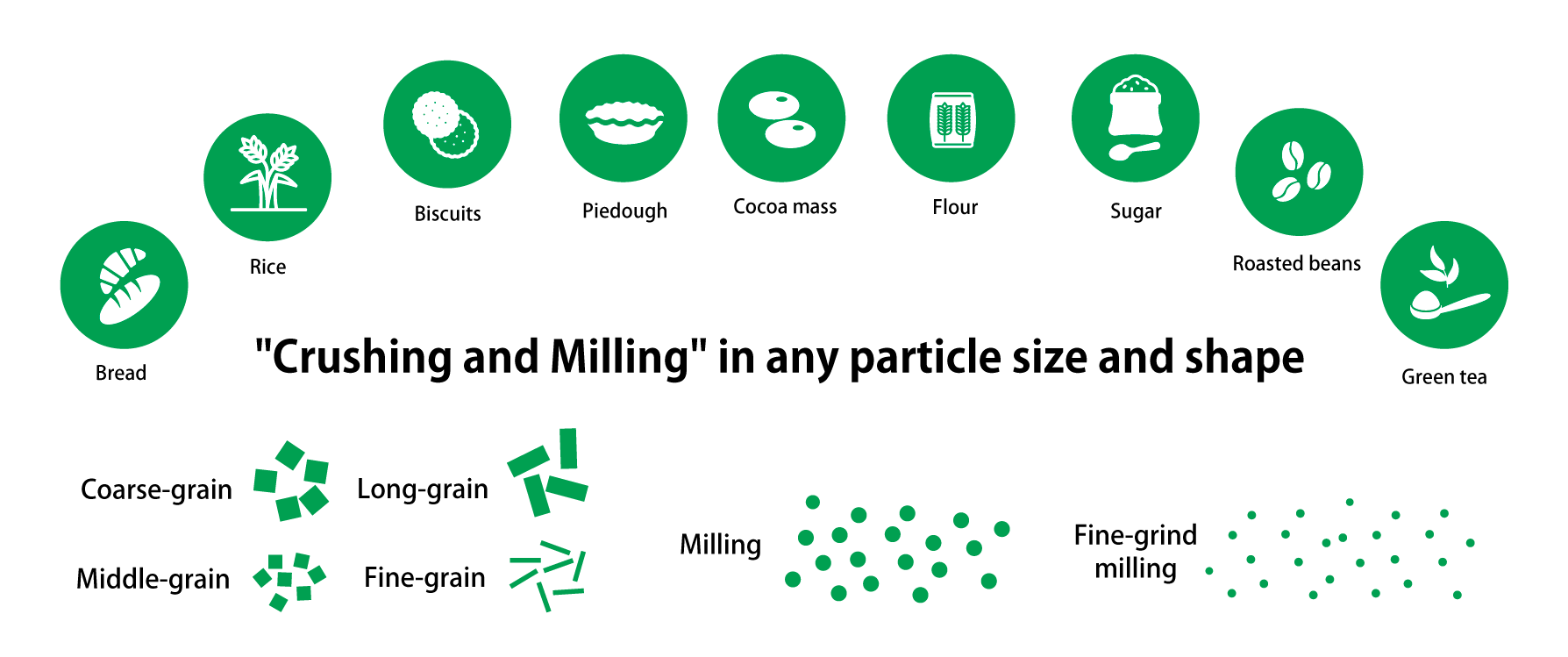

Crushing and milling materials from various industrial fields with various particle sizes and shapes
From "crushing," which roughly crushes large materials such as bread and biscuits, "pulverization," which mills materials into powder (sugar, salt, etc.), to "ultra-fine pulverization." We can handle a wide variety of material types and purposes, from microns to millimeters.

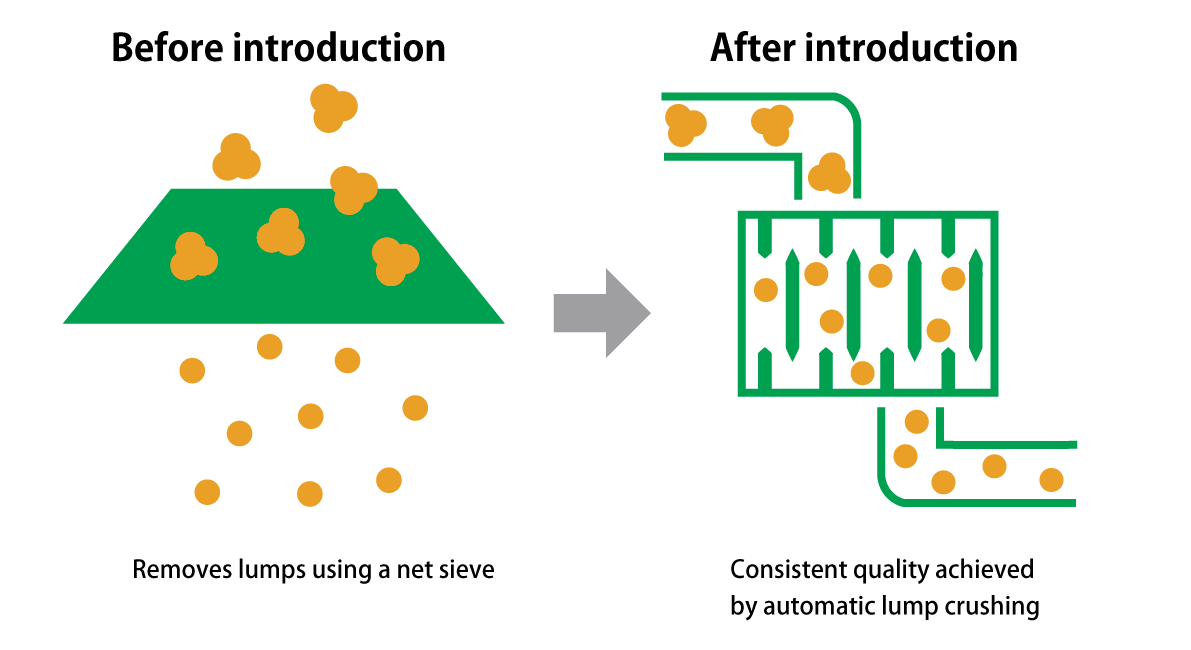

Stabilizing Quality by Crushing Lumps of Confectionery Materials
It is a major hassle to manually sift lump-prone materials through the mesh sieve. Adding a "PowCrusher" to the line for automatic crushing will stabilize quality and reduce losses compared to manual crushing, and will also prevent foreign matter contamination since there is no human intervention.

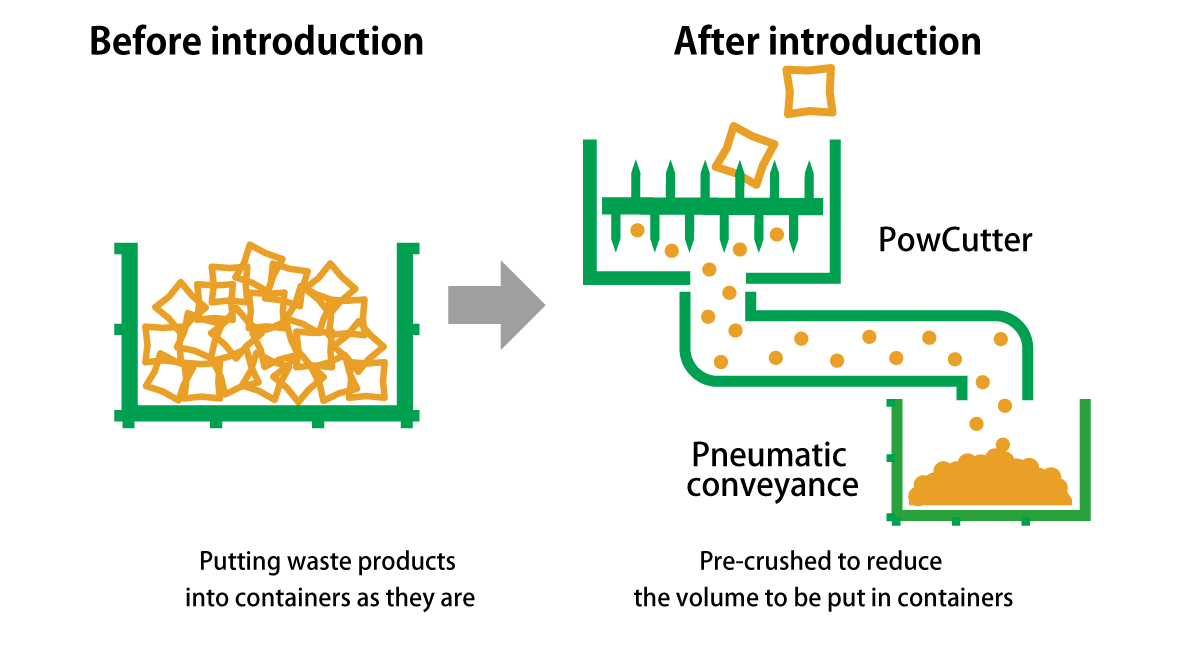

Reduced Processing Costs by Crushing Waste Products into Particles
Loss products on the production line can be reduced significantly and processing costs can be saved by using a "PowCutter" to coarsely crush them into powder form and then pack them into containers. Pneumatic conveyance of powdered loss products also eliminates the need for manual conveyance.
Application examples of TSUKASA's crushing and milling equipment
Modularized according to the type of powder handled
A dry material pulverizing line
The material, granulated sugar, is fed from the "Dumping Server," lumps are crushed by the "LINESIFTER®," and non-magnetic foreign matter is removed by the "Line Mill." The "PowSilo" is then used for weighing and stocking.
A grain pulverizing line
Two-step milling is also available to reduce the load of sieving materials. Two units each of "Line Mill" and "LINESIFTER® Two-type Separating Model" are installed for coarse grinding at first, and then for finer grinding.
A powdered sugar production line
This is an example of a line where crushing is required as a pre-crushing process of materials. A "PowCutter" is installed in front of the "Line Mill" to crush materials.
Video
Crushing equipment
PowCutter(PCT)
Crusher for handling materials with a wide variety of grain sizes and shapesMORE ＞
PowCutter LAB
Compact crusher that can be used on a tableMORE ＞
PowCrusher(PCR)
Crusher optimal for crushing powder clumps and snackMORE ＞
Mill
Line Mill®︎(LM)
Mill for easy adjustment of grain sizesMORE ＞
PowJet Horizontal Model(PJ-H)
Dry mill using high performance, high capacity air current energyMORE ＞
PowJet Vertical Model(PJ-V)
Dry mill using air current energy for highly accurate fine pulverizationMORE ＞
Wave Mill Horizontal Model(WM-H)
Pneumatic mill with high capacityMORE ＞
Wave Mill Vertical Model(WM-V)
Pneumatic mill for highly accurate fine pulverizationMORE ＞
Stamp Mill
High safety and cleanabilityMORE ＞
If you want to request or download detailed information, or consult with us about technologies or ask questions about our products, contact us from this page.
