Powder Flap Gate
PowGate Flap Double(PGF-W)
Applications
For dischage which requires seal power, for discharge which needs continuous charge, and for discharge of cyclone.
Specifications
⚫︎Materials:
Stainless steel (powder-contacting areas), steel
⚫︎Standard color: Steel sections ― N-9 (white)
⚫︎Cylinder air pressure: 0.4MPa to 0.6MPa
⚫︎Standard equipment:
Pneumatic cylinder, solenoid valve, manual-operation button, cylinder switch, and inspection port
⚫︎Seal material: EPDM (white)
When ordering, please provide us with the following information:
1.Model 2.Solenoid-valve specifications 3.Cylinder switch voltage and quantity 4.Conveyed material (powder or granulate) 5.Frequency of operation
Stainless steel (powder-contacting areas), steel
⚫︎Standard color: Steel sections ― N-9 (white)
⚫︎Cylinder air pressure: 0.4MPa to 0.6MPa
⚫︎Standard equipment:
Pneumatic cylinder, solenoid valve, manual-operation button, cylinder switch, and inspection port
⚫︎Seal material: EPDM (white)
When ordering, please provide us with the following information:
1.Model 2.Solenoid-valve specifications 3.Cylinder switch voltage and quantity 4.Conveyed material (powder or granulate) 5.Frequency of operation

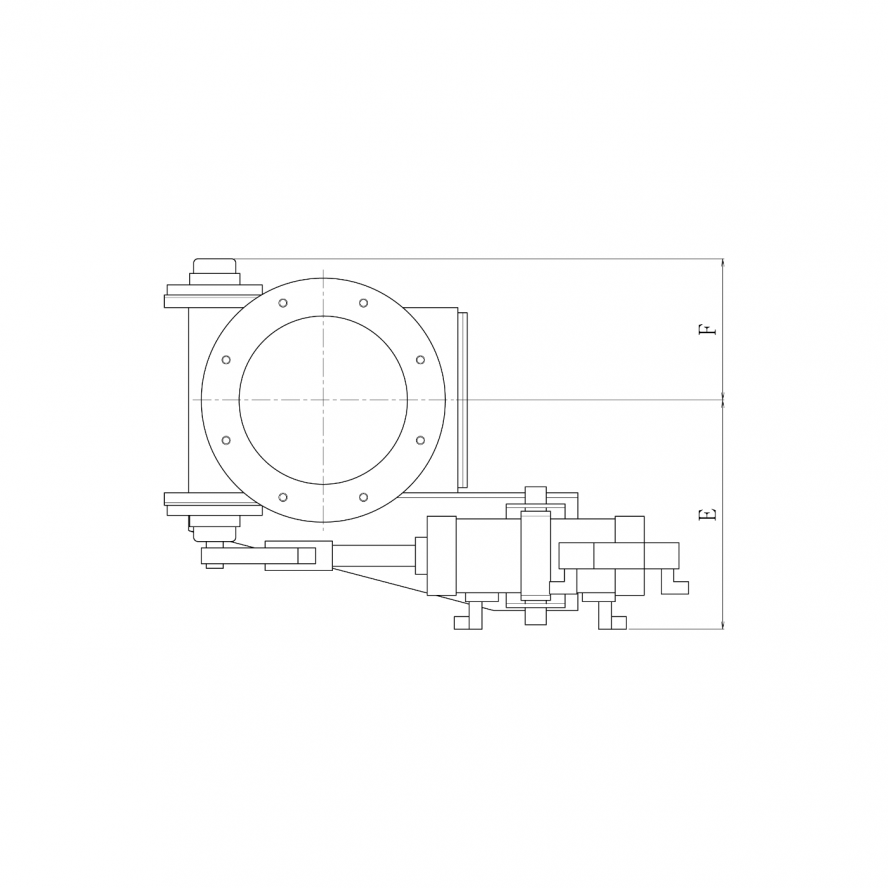

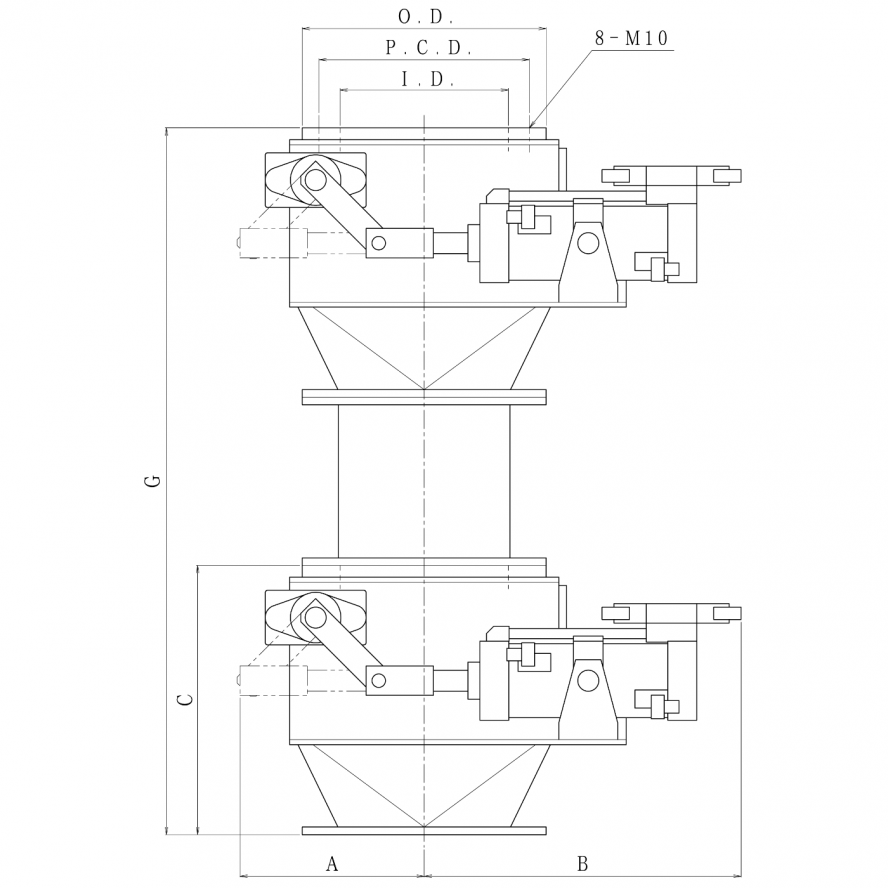

Drawings/Dimensions
