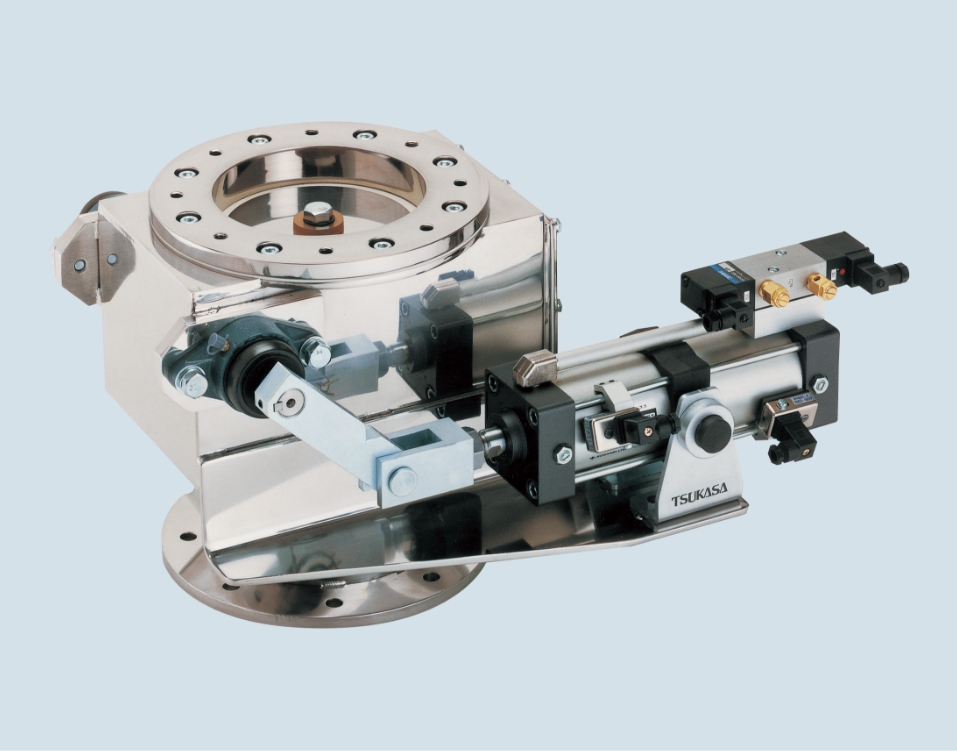

Powder Flap Gate
PowGate Flap(PGF)
Applications
Discharge beneath filter unit or cyclone, tank, silo, screw feeder, mixer and for scale inlet gate.
Specifications
⚫︎Materials: Stainless steel (powder-contacting areas)
⚫︎Standard color: Steel sections ― N-9 (white)
⚫︎Cylinder air pressure: 0.4MPa to 0.6MPa
⚫︎Standard equipment:
Pneumatic cylinder, solenoid valve, manual-operation button, and cylinder switch
⚫︎Seal material: EPDM (white)
⚫︎Standard color: Steel sections ― N-9 (white)
⚫︎Cylinder air pressure: 0.4MPa to 0.6MPa
⚫︎Standard equipment:
Pneumatic cylinder, solenoid valve, manual-operation button, and cylinder switch
⚫︎Seal material: EPDM (white)

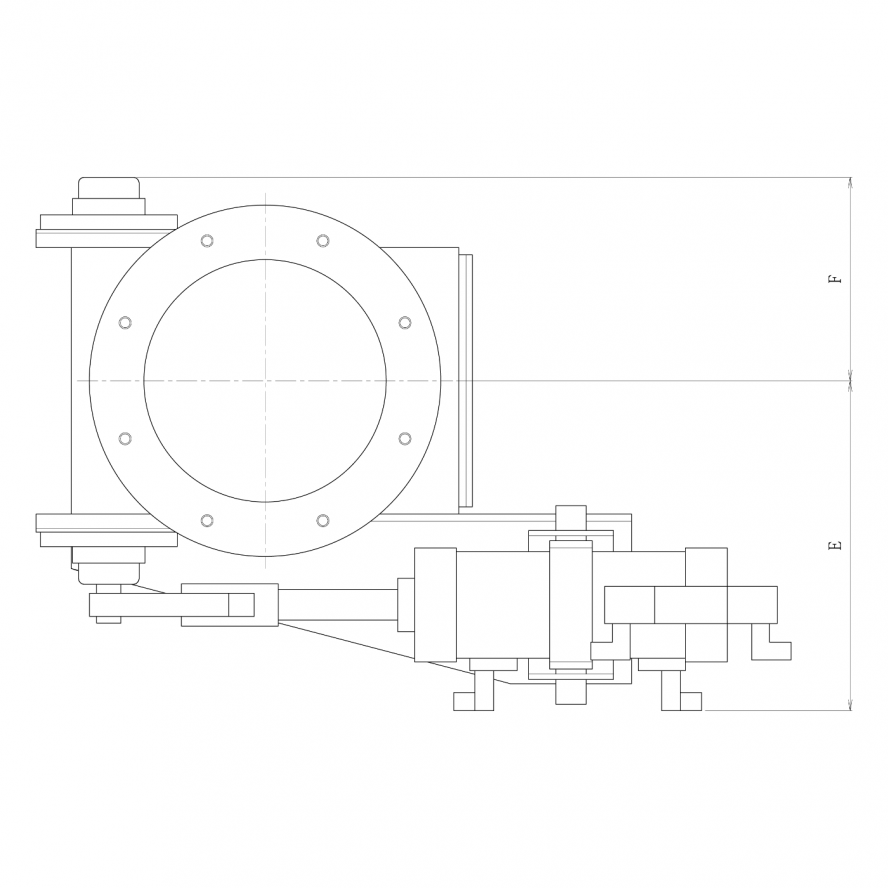

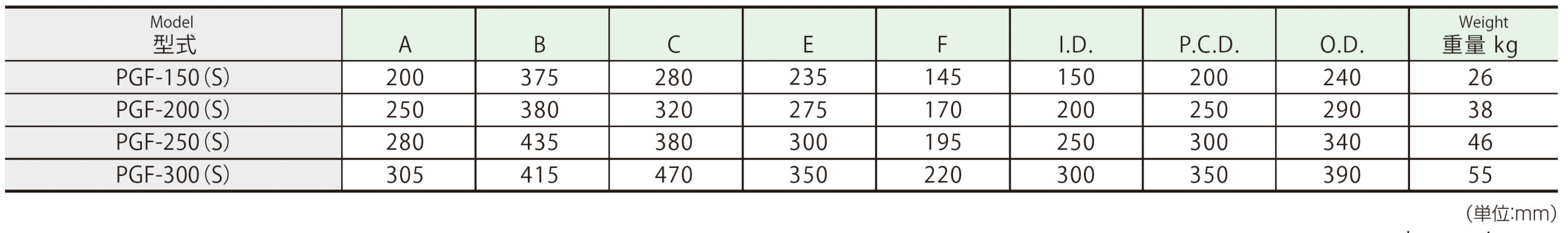

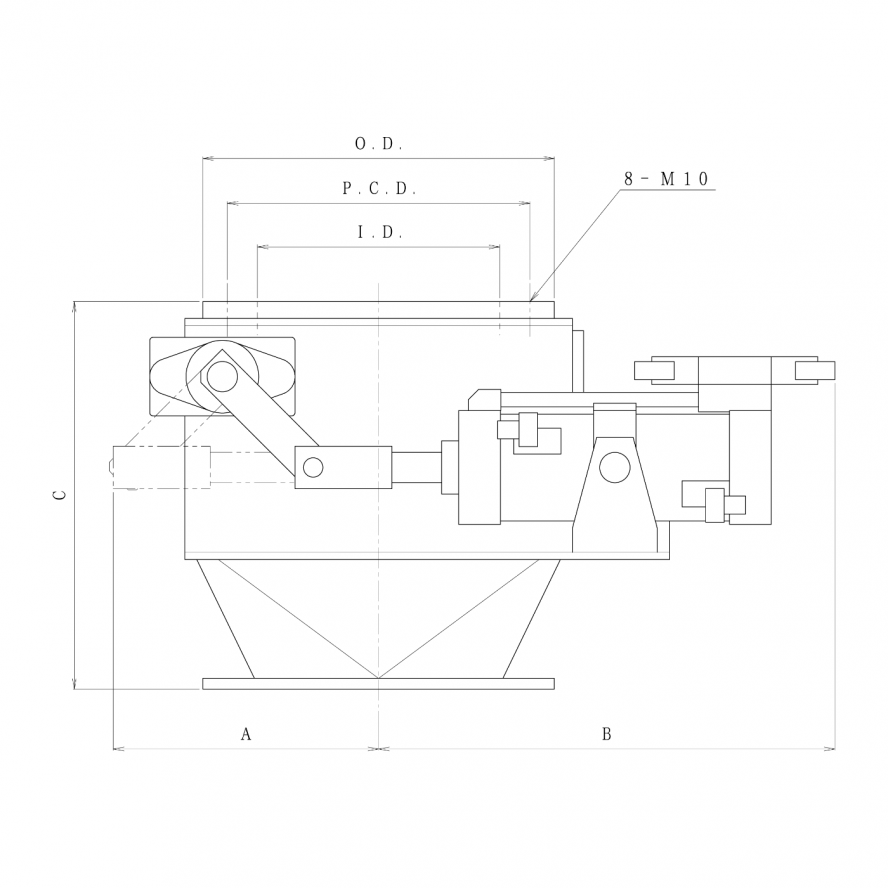

Drawings/Dimensions
When ordering, please provide us with the following information:
1.Model 2.Solenoid-valve specifications 3.Cylinder switch voltage and quantity 4.Conveyed material (powder or granulate) 5.Frequency of operation
1.Model 2.Solenoid-valve specifications 3.Cylinder switch voltage and quantity 4.Conveyed material (powder or granulate) 5.Frequency of operation
