Two-way Valves

PowChange Light LA-shaped Automatic Model(PC-LA)

<br />
<b>Warning</b>:  Undefined variable $single_name in <b>/home/xb501398/tsukasa-ind.co.jp/public_html/wp-content/themes/tsukasa/single-product.php</b> on line <b>152</b><br />
 イメージ

Applications

⚫︎Damper allows switching of direction on flow of granular material

⚫︎Appropriate for precision sealing (fine powder)

Specifications

⚫︎Materials: Parts contacting conveyed powder are stainless steel

⚫︎Standard color: Steel sections...N-9(white) and plated finish

⚫︎Damper Seal Materials: Polyester elastomer

⚫︎Applied internal pressure: Atmospheric pressure

⚫︎Standard equipment: Pneumatic cylinder, solenoid valve, manual button and cylinder switch

⚫︎Options: Explosion specifications, secondary battery specifications, surface treatment(adhesion prevention, curing treatment, buffed finish etc.)

⚫︎With mating flange (stainless steel) and packing (EPDM white)

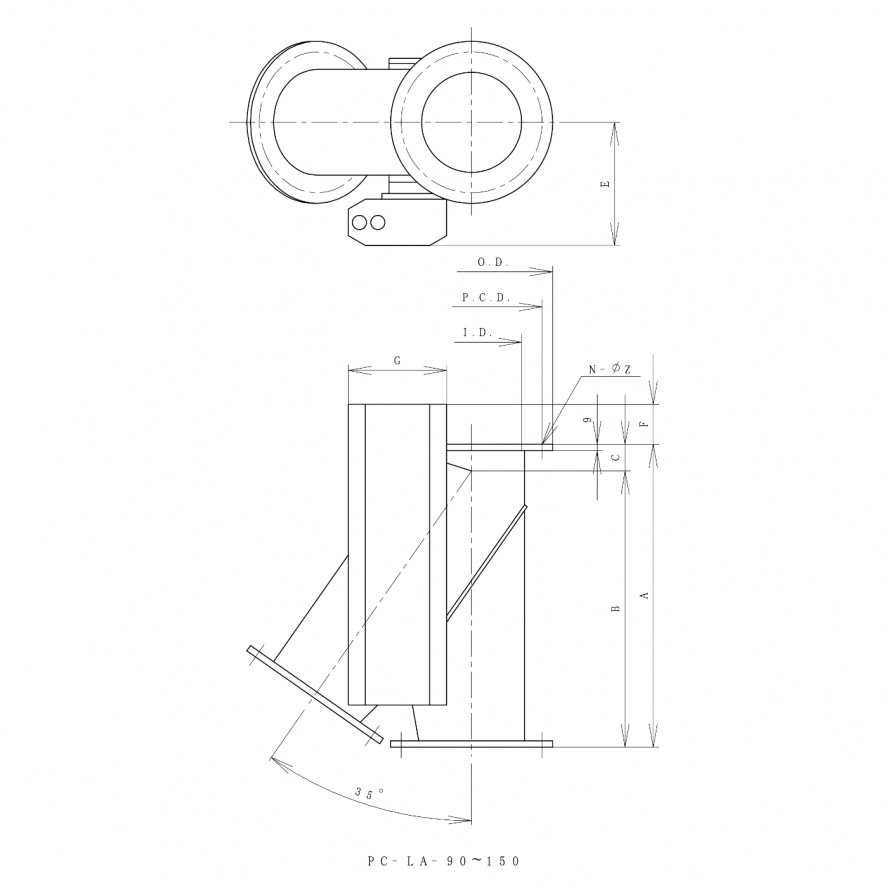

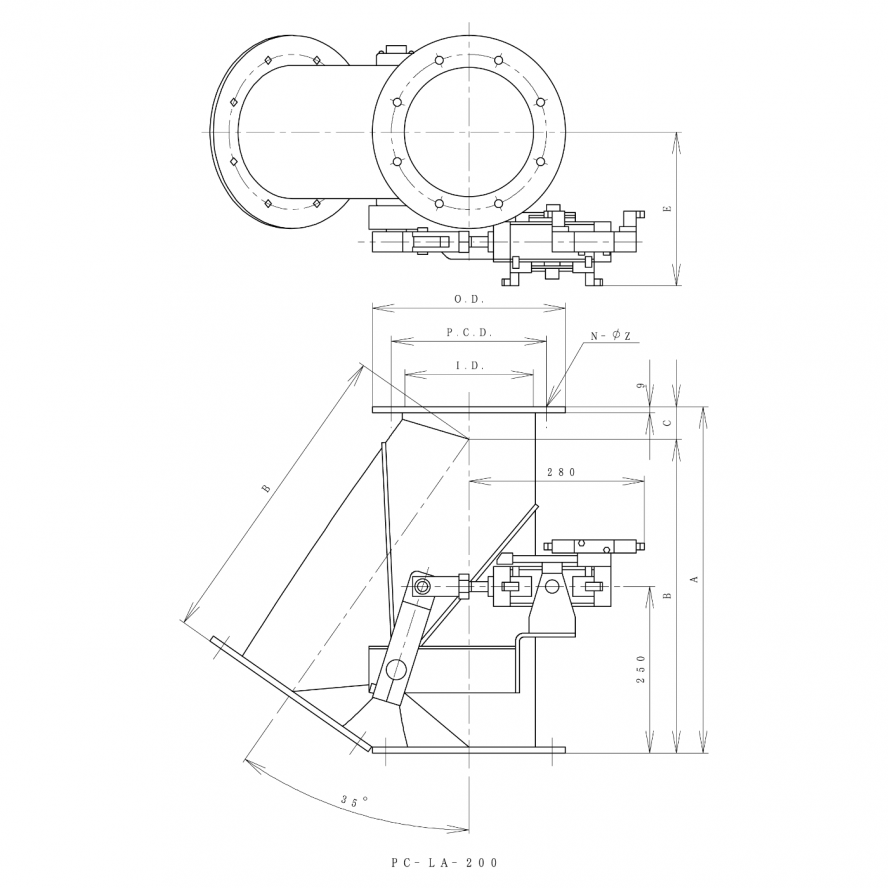

Drawings/Dimensions

<br />
<b>Warning</b>:  Undefined variable $single_name in <b>/home/xb501398/tsukasa-ind.co.jp/public_html/wp-content/themes/tsukasa/single-product.php</b> on line <b>152</b><br />
 イメージ
<br />
<b>Warning</b>:  Undefined variable $single_name2 in <b>/home/xb501398/tsukasa-ind.co.jp/public_html/wp-content/themes/tsukasa/single-product.php</b> on line <b>216</b><br />
 イメージ
https://www.tsukasa-ind.co.jp/wp-content/uploads/2024/05/PCLA02.jpg イメージ
⚫︎For PC-LA-90 to 150, the cylinder mounting orientation can be horizontal and vertical.

⚫︎When ordering, please provide us with the following information:
 1. Model
 2. Solenoid valve specifications
 3. Cylinder switch voltage and quantity
 4. Conveyed material and conveyance method
If you want to request or download detailed information, or consult with us about technologies or ask questions about our products, contact us from this page.
