Weighing Process
Precisely weight large amount of main materials and small amount of additives
Precisely weight large amount of main materials and small amount of additives
Weighing equipment
Divider Scale Combination Detachable Model(DSC-CDP-DE)

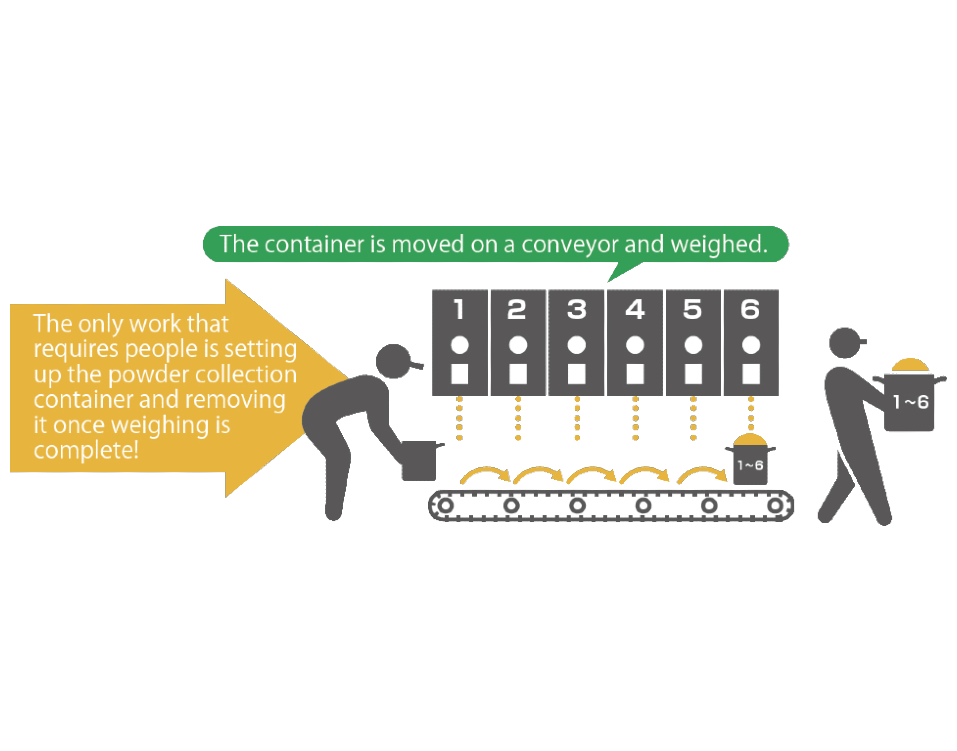

Continuous weighing of multiple raw materials is achieved using integrated weighing equipment and an automated conveyor
Features
⚫︎The integrated weighing and conveying unit enables high-speed, high-precision continuous mixing of multiple raw materials.

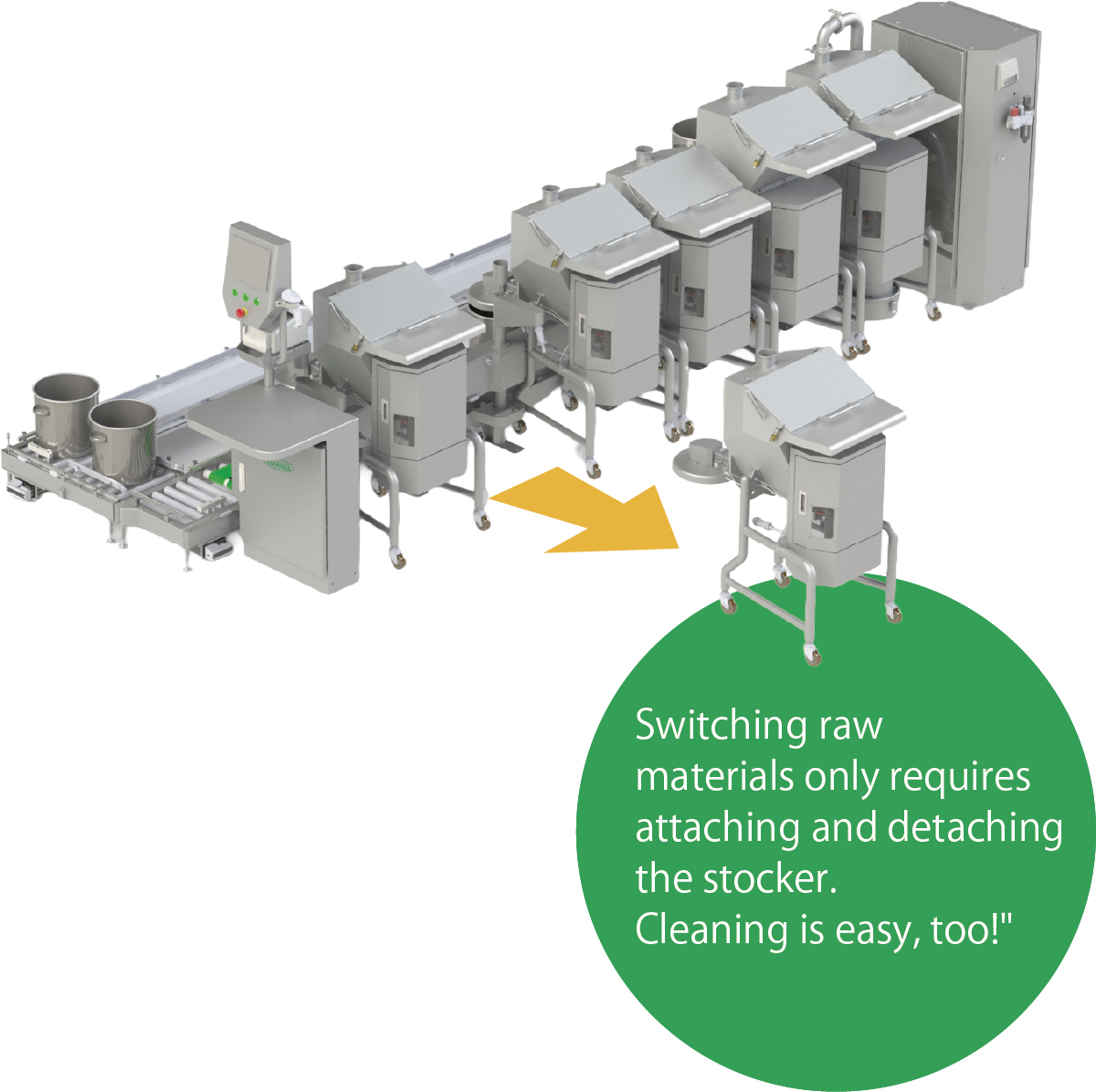

⚫︎The adoption of a detachable stocker speeds up product changeovers. It also supports external setup and cleaning, improving both operational efficiency and hygiene.
⚫︎Weighing stations can be freely connected depending on installation conditions and the number of ingredients, enabling flexible adaptation to a wide variety of recipes.
⚫︎The separate discharge port reduces cross-contamination. It can also be equipped with a dust collection function for dust-generating raw materials.
⚫︎It supports API and QR code integration, label printing, and history management. It supports factory digital transformation (DX) through integration with the PV Checker.
⚫︎The adoption of a detachable stocker speeds up product changeovers. It also supports external setup and cleaning, improving both operational efficiency and hygiene.
⚫︎Weighing stations can be freely connected depending on installation conditions and the number of ingredients, enabling flexible adaptation to a wide variety of recipes.
⚫︎The separate discharge port reduces cross-contamination. It can also be equipped with a dust collection function for dust-generating raw materials.
⚫︎It supports API and QR code integration, label printing, and history management. It supports factory digital transformation (DX) through integration with the PV Checker.
Specifications
⚫︎Weighing range:100g to 15kg (Apparent specific gravity of 0.5)
⚫︎Minimum scale: 1g
⚫︎Scaling accuracy: ±2g to 5g * Performance may vary depending on raw material properties.
⚫︎Minimum scale: 1g
⚫︎Scaling accuracy: ±2g to 5g * Performance may vary depending on raw material properties.
Options
⚫︎IoT management of material and weighing history
⚫︎Linked with host production management system server
⚫︎Linked with host production management system server
